WATTSTONE presents WallPV

Vertical Wall PV System - innovative & aesthetic energy generation directly on your facade

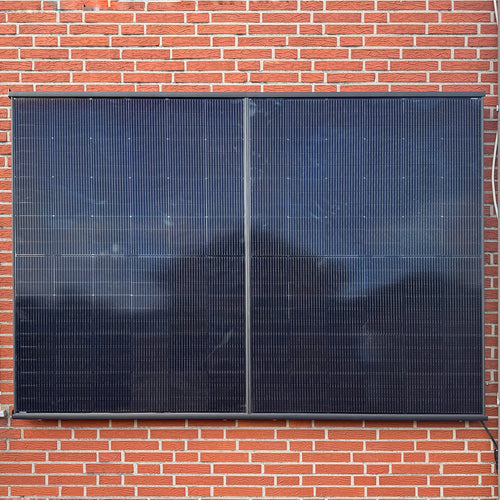

Installation of two vertically aligned PV modules side by side or of two standalone modules.

Wattstone

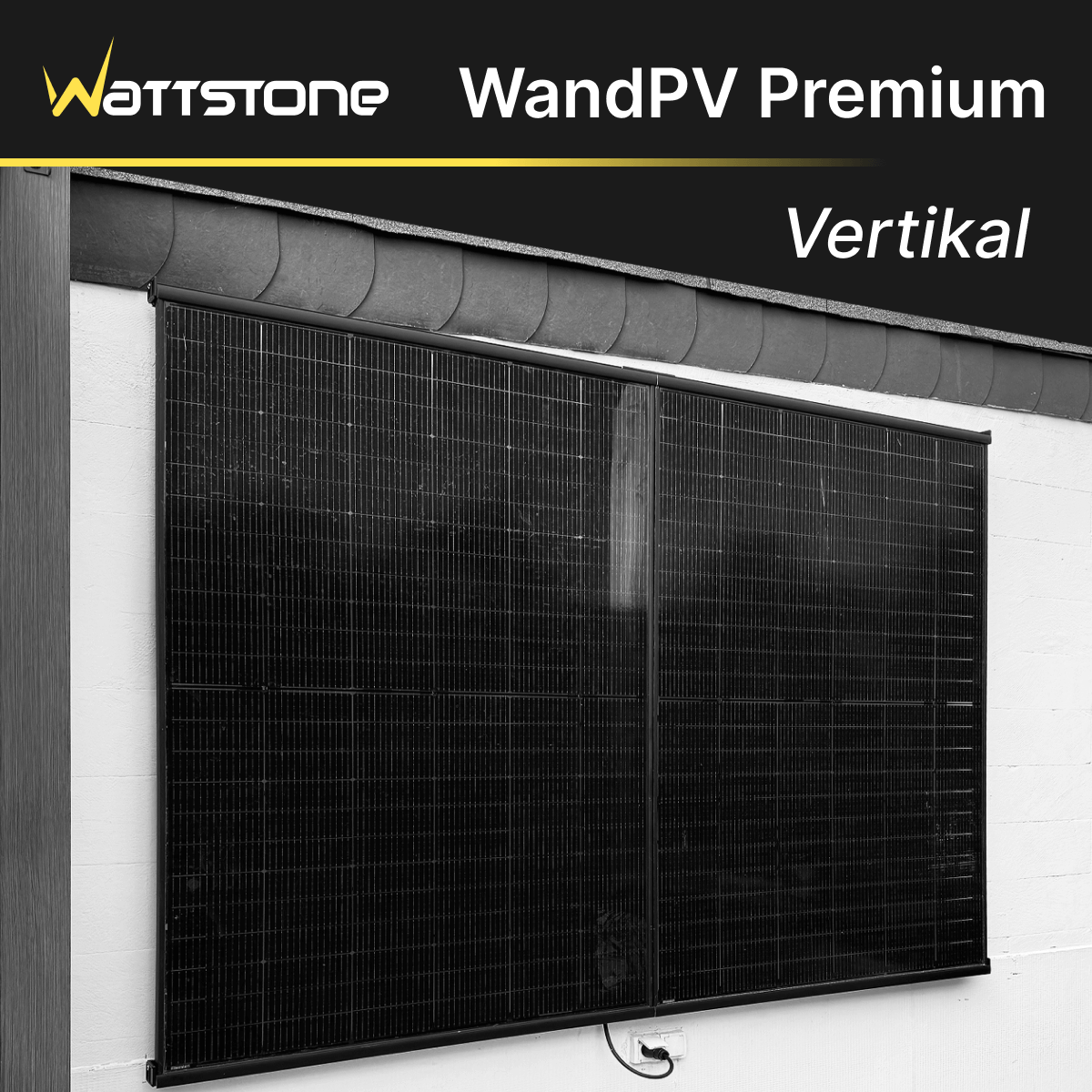

Wall PV Premium concealed mounting kit - vertical mounting of 2 PV modules

Jetzt als Händler registrieren.
Shipping calculated at checkout.

Pickup available at Grenzstraße 182 in Voerde

Usually ready in 2-4 days

Refined vertical PV mounting system for the wall without protruding parts

  • Secure installation with fall protection - Reinforced and approved insert rails and dowels, pre-drilled support rails with fall protection
  • Uniform full black system optics - no protruding silver brackets for an aesthetic facade
  • No annoying cutting or pre-drilling - all profile rails are cut to size for the most common modules up to a width of 1130 mm and pre-drilled
  • Higher lifespan of the PV modules - floating, safe and stress-free mounted, resulting in fewer microcracks and stresses in the PV modules
A concealed mounting system consisting of support rails, insert rails, and fastening materials for the vertical mounting of two PV modules on the wall
  • From a module to the complete facade - the included rail connectors allow for an extension in the horizontal direction and the rails in the vertical direction
  • Higher PV yields in winter, in the morning and evening - Thanks to the vertical module orientation, an effective addition to the flat roof system
  • Regionally manufactured - Made in Germany
  • Secure the microinverter to the mounting rail using the included T-nut.
  • Installation time only about 1 hour

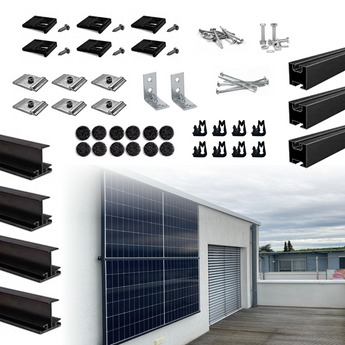

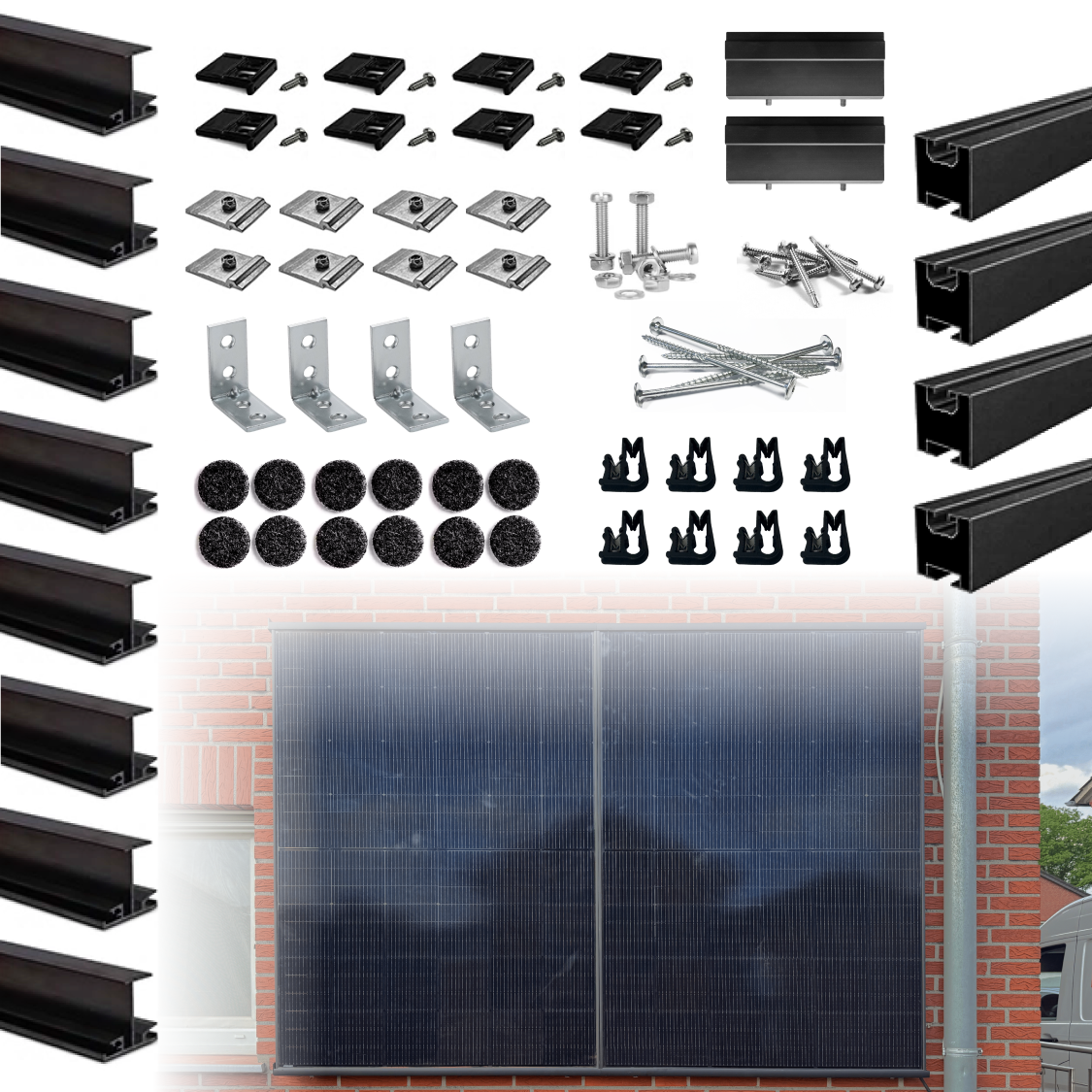

Delivery contents (Box dimensions: 120 x 10 x 20 cm)

  • 4 insert rails 30 mm/1340 mm, black anodized aluminum
  • 4 base rails 40 x 40 x 1200 mm, pre-drilled silver aluminum
  • 4 edge stops in black with screw and alternative one-way security screw
  • 8 cross connectors ELS with groove screw M8 and lock nut
  • 2 rail connectors for black insert rails
  • 8 pan head screws 8 x 100 mm with Fischer multi-purpose plugs
  • 2 T-slot nuts with screw M8 x 12 mm and washer
  • 8 lens head screws, 3.5 x 13 mm
  • 4 anti-slip brackets: Galvanized securing angle 25 x 25 x 15 mm

Currently 4-6 weeks delivery time.

Dimensions and Weight

Box: 120 x 10 x 20 cm
Weight: 14.7 kg

Alignment and fastening

Orientation: Vertical / PV module oriented in portrait mode

Mounting: On the wall

Assembly Overview

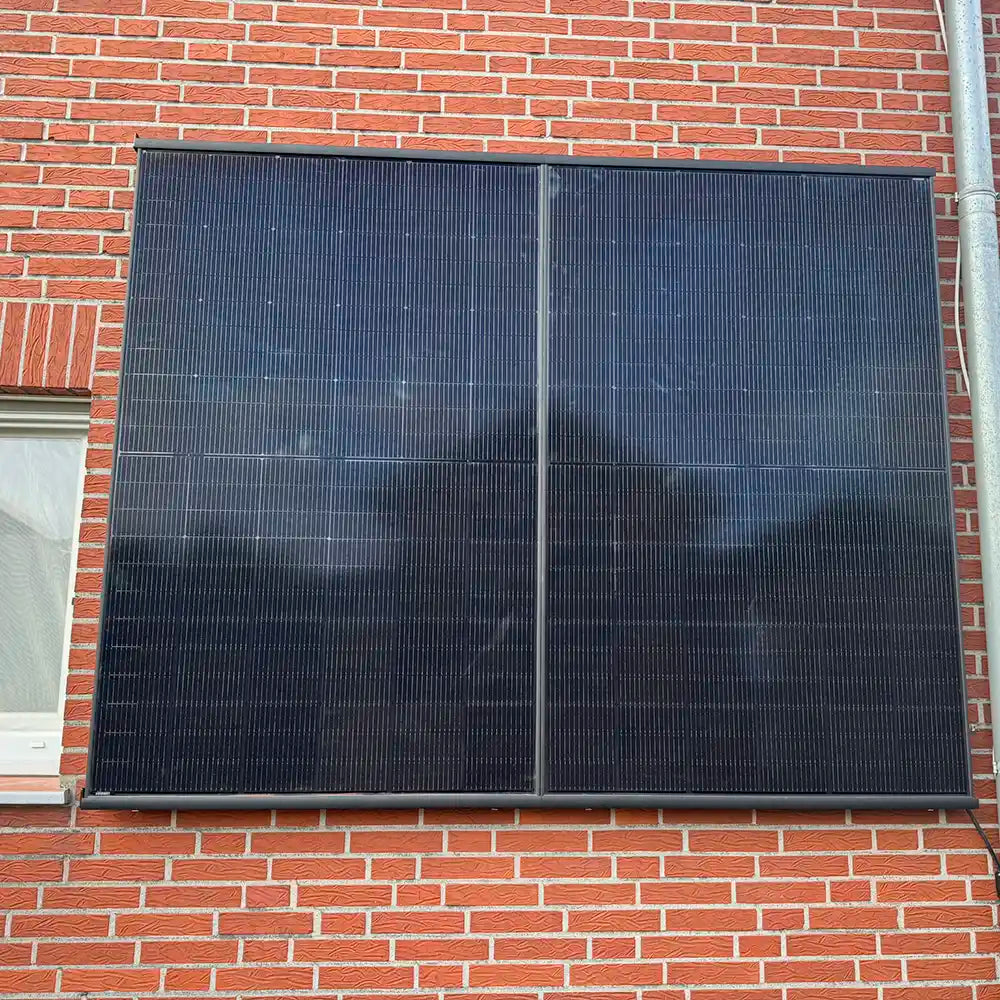

Installation of two vertically aligned PV modules side by side or of two standalone modules.

Attachment to solid masonry, brick, stone, concrete, or wood with included screws and dowels.

Suitable for PV modules with a frame depth of 30 mm and a module width of 1134 mm, with the module height being freely selectable.

Nut stone for the attachment of the micro-inverter to the support rail is included.

Support rails are pre-drilled with included fall protection.

Delivery Note

Delivery within 4-6 weeks.

Shipping costs are calculated based on the selected quantity and the provided delivery address.

This product will be delivered by a parcel carrier.

Product test: WallPV

Unpacked and checked the contents. The YouTube channel operator of "reviewmirror" thinks it can get started with his photovoltaic project "Facade Solar by Wattstone. In this product test video, he shows the fall protection and the step-by-step assembly of the side cladding and cross connectors. The professional alignment, inverter mounting, assembly of the base rail up to the finale. Form your own opinion and watch the conclusion and the many comments.

The perfect combination of design, efficiency, and durability

Our new vertical wall PV mounting system – energy generation directly on the building facade.
WandPV Premium verdecktes Montagepaket - vertikale Montage von 2 PV-Modulen, WATTSTONE b2b

Efficient power generation on your exterior wall

Utilize the exterior wall of your building to efficiently generate electricity: With the new WallPV system, the photovoltaic system is mounted vertically in front of the facade. Our system is specifically designed for solid exterior walls made of brick, stone, or concrete without external thermal insulation. The installation is carried out using a mounting kit that consists of building authority approved anchors and stainless steel screws.

Modern aesthetics for every facade

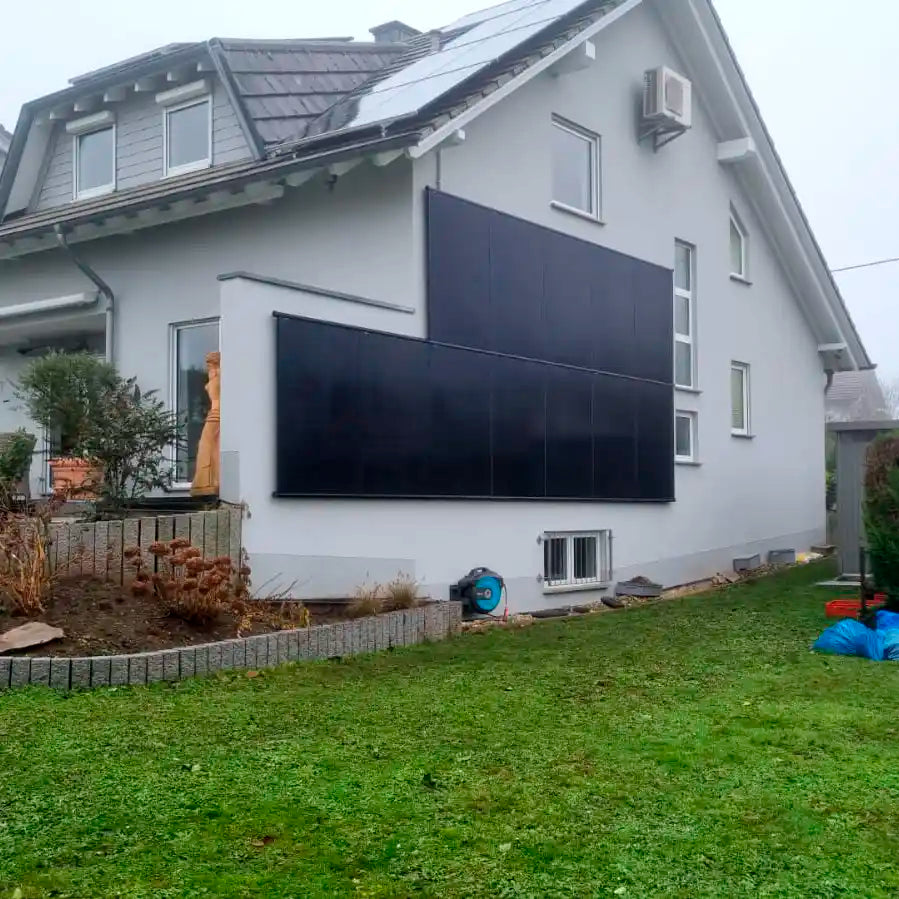

Whether on the exterior wall of an industrial building or a single-family home – with our wall-mounted PV installation system, a modern and highly aesthetic facade is created that enhances the visual appeal of the building. All visible mounting system components are available in black anodized finish and can be harmoniously combined with blue or black modules.

Easy assembly and secure fastening

The modules are placed in the rails with their entire frame length, thus being held stable, secure, and gently. Thanks to the few components and pre-assembled parts, the setup is additionally facilitated. A secure and easy attachment of the microinverters is ensured by the included T-nut, which reliably fixes them to the support rail and allows them to disappear behind the module.

The wall PV system offers you flexibility

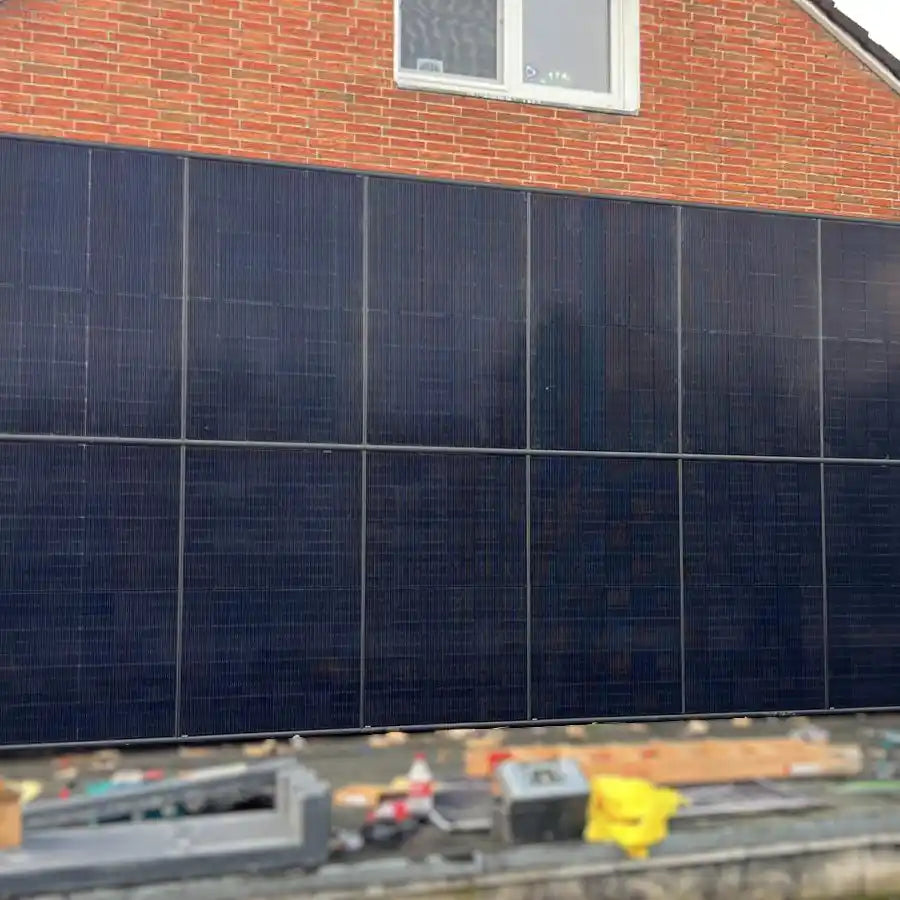

The attached rail connectors allow for easy expansion horizontally and the rails vertically, enabling you to realize everything from a single module to complete facade coverage. Particularly advantageous is the higher energy yield during the winter months as well as in the morning and evening hours, making the wallPV mounting system the perfect complement to your flat roof system.

Quality and sustainability are our top priorities.

WandPV Premium verdecktes Montagepaket - vertikale Montage von 2 PV-Modulen, WATTSTONE b2b

That is why our WallPV system is manufactured regionally in Germany to guarantee the highest standards and short delivery routes.

Assembly instruction video

Video Tutorial: WallPV Vertical Mounting System

Base rails

4 pre-drilled base rails 40 x 40 x 1200 mm aluminum silver

Inserts

4 insert rails 30 mm/1765 mm aluminum black anodized with ETA

Connector

8 Connectors Insertion Rail Force and Form Closure Completely Assembled

Edge stop

4 x Edge stop black with screw & alternative one-way security screw

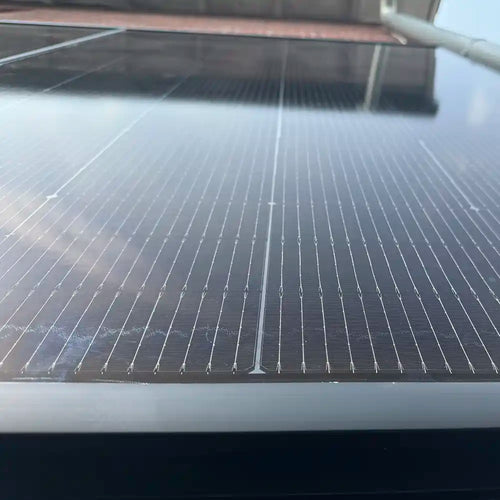

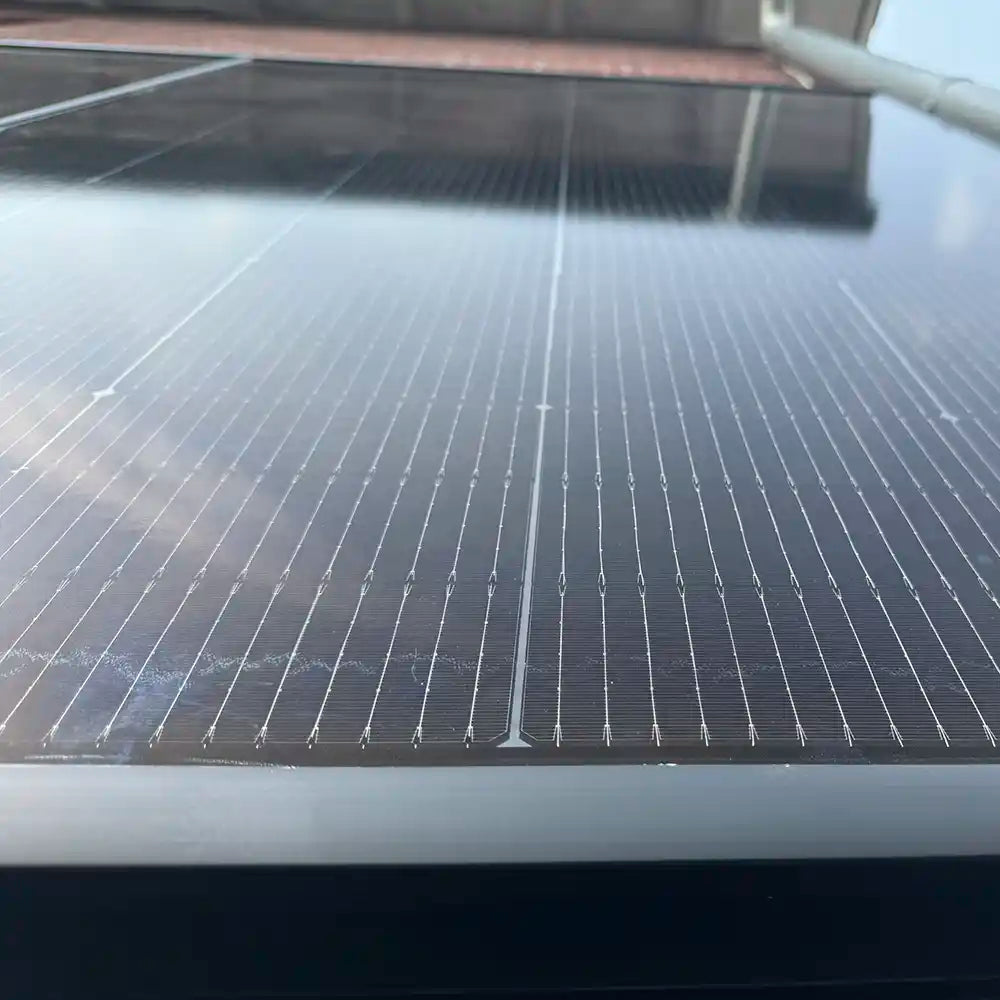

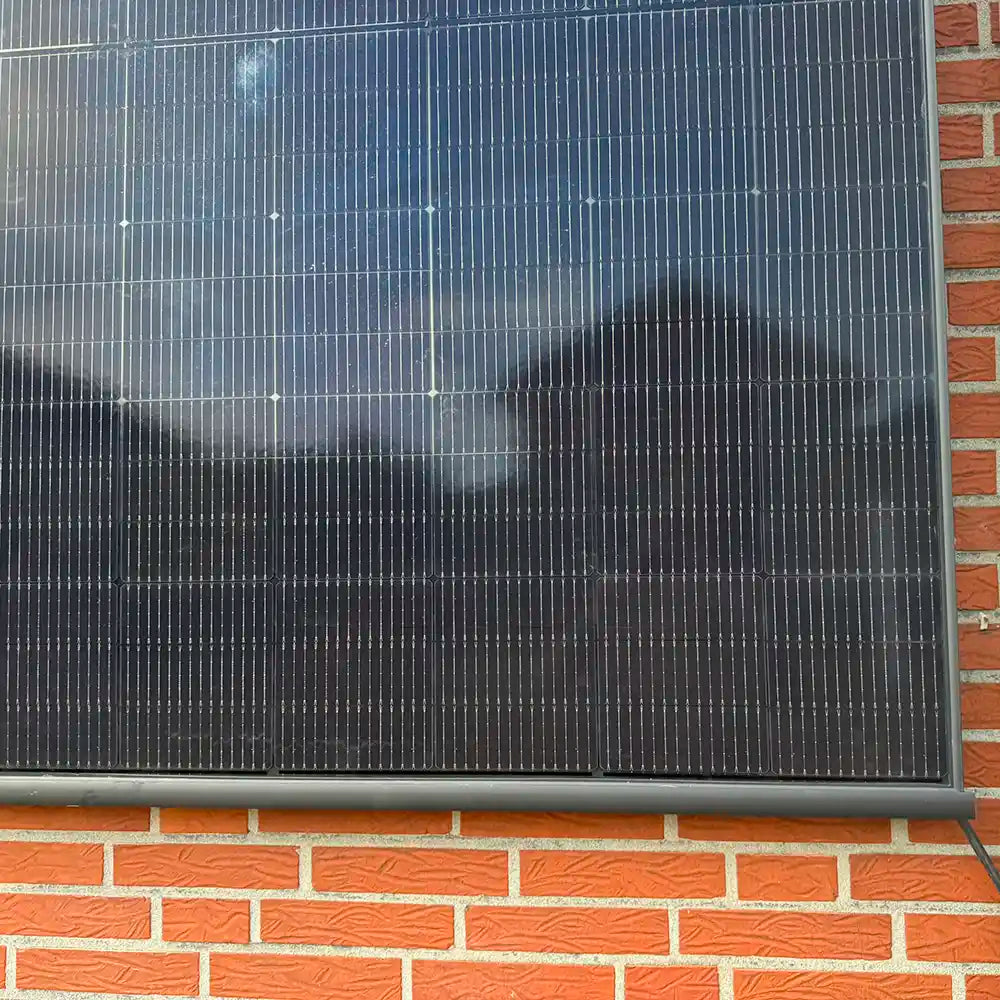

With love for detail

WATTSTONE places great importance on quality in materials and workmanship. See for yourself.

WandPV Premium verdecktes Montagepaket - vertikale Montage von 2 PV-Modulen, WATTSTONE b2b

Stable, practical, efficient, and useful - Wall PV

Due to the vertical arrangement, it is possible to achieve high yields even at low sun angles, leading to a continuous generation of renewable energy throughout the year. This is particularly advantageous in the early morning and late evening hours when energy demand is higher. A wall power plant is therefore particularly well-suited for private electricity generation to compensate for the less productive times of a roof system.
