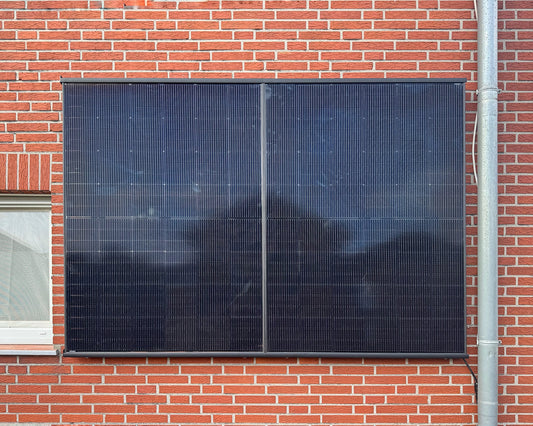

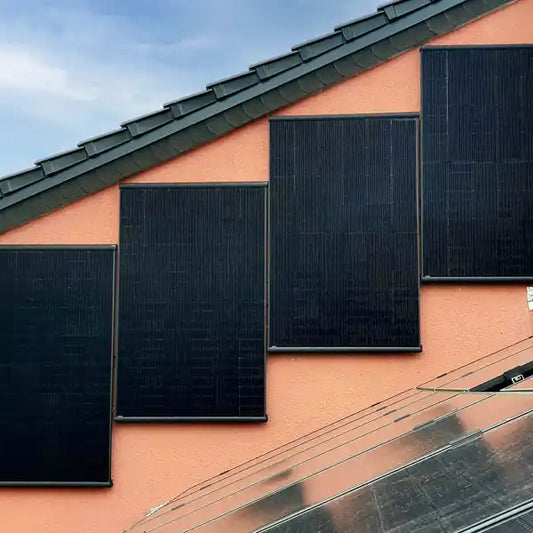

Wall PV Premium concealed mounting kit - vertical mounting of 2 PV modules

Refined vertical PV mounting system for the wall without protruding parts

• Secure installation with fall protection - Reinforced and approved insert rails and dowels, pre-drilled support rails with fall protection
• Uniform full black system optics - no protruding silver brackets for an aesthetic facade
• No annoying cutting or pre-drilling - all profile rails are cut to size for the most common modules up to a width of 1130 mm and pre-drilled
• Higher lifespan of the PV modules - floating, safe and stress-free mounted, resulting in fewer microcracks and stresses in the PV modules

A concealed mounting system consisting of support rails, insert rails, and fastening materials for the vertical mounting of two PV modules on the wall

• From a module to the complete facade - the included rail connectors allow for an extension in the horizontal direction and the rails in the vertical direction
• Higher PV yields in winter, in the morning and evening - Thanks to the vertical module orientation, an effective addition to the flat roof system
• Regionally manufactured - Made in Germany
• Secure the microinverter to the mounting rail using the included T-nut.
• Installation time only about 1 hour

Delivery contents (Box dimensions: 120 x 10 x 20 cm)

• 4 insert rails 30 mm/1340 mm, black anodized aluminum
• 4 base rails 40 x 40 x 1200 mm, pre-drilled silver aluminum

• 4 edge stops in black with screw and alternative one-way security screw

• 8 cross connectors ELS with groove screw M8 and lock nut

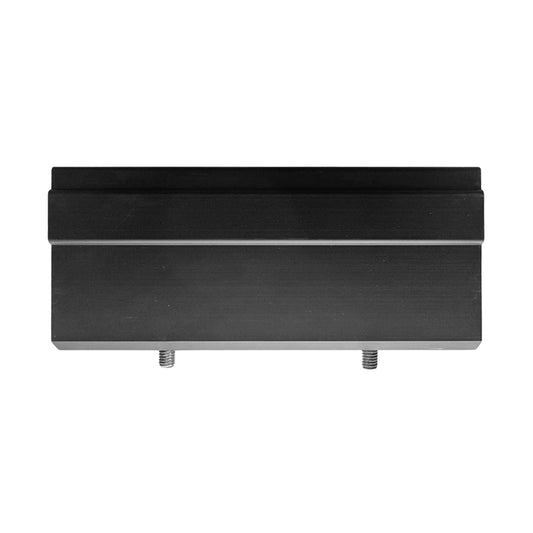

• 2 rail connectors for black insert rails

• 8 pan head screws 8 x 100 mm with Fischer multi-purpose plugs

• 2 T-slot nuts with screw M8 x 12 mm and washer

• 8 lens head screws, 3.5 x 13 mm

• 4 anti-slip brackets: Galvanized securing angle 25 x 25 x 15 mm

Currently 4-6 weeks delivery time.
